Using Water Absorbing Crystal Gel To Create Polymer
Clay Base For Baking, For Making Hollow Bead
And Water Diorama

Some Call It Gel Crystal Bolls, Baby Gel Crystals,
Water Babies, Crystal Beads, Crystal Soils

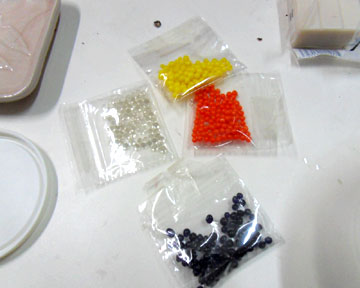

Water Absorbing Crystal Gel Pellets in small plastic bags, great
for plants also great for using it as a polymer clay base.  Its an
alternative to using cornstarch as baking clay base. Baking
polymer clay on the gel is clean and no mess, you can reuse
the gel after baking.

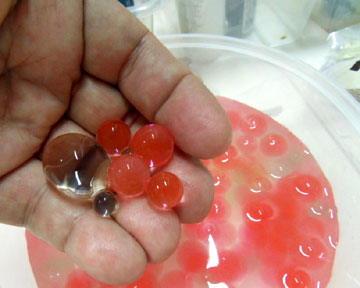

Putting them in the water, will expands to 4 -10 times the size,
depending on the types of gel pellets.


Example: the image shows the various types of expanded
 crystal gels

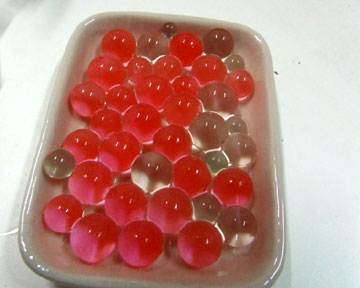

Putting them in any heat resistant container, will create a gel
base for baking any polymer beads or others
*Note: Do not use Plastic containers, it will melt in the
oven at that temperature. Containers should be PVC,
Microwavable, Tupperware, porcelain, glass and
any heat resistant ware

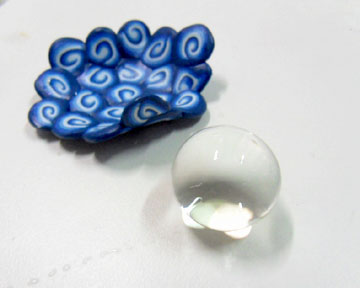

Example of making a hollow bead, wrapping polymer cane
onto the crystal gel bead


 Wrapping polymer clay over the gel

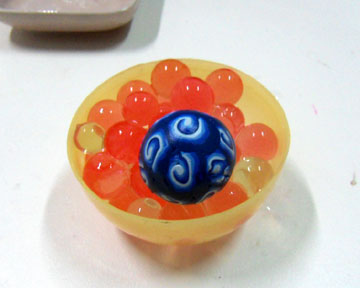

Placed the cane bead onto the gel base as above


Baked the projects in the oven for 45 minutes, within a temperature
of 150º C (300º F)

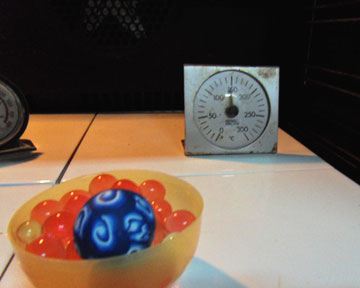

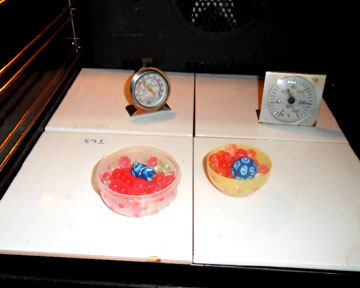

Close up veiw of the baking process

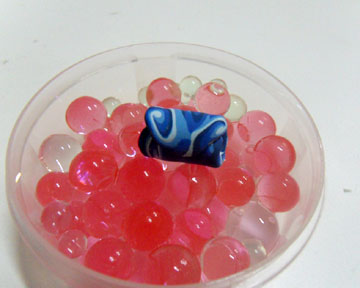

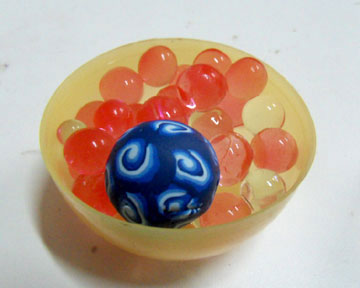

After baking for 45 minutes in the oven, within a temperature
of 150º C (300º F)


Another Example: After baking for 45 minutes in the oven, within a
temperature of 150º C (300º F)

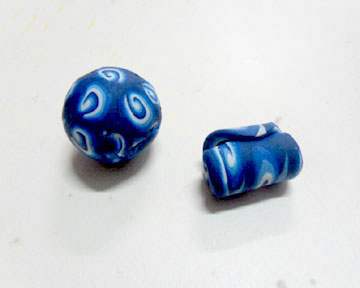

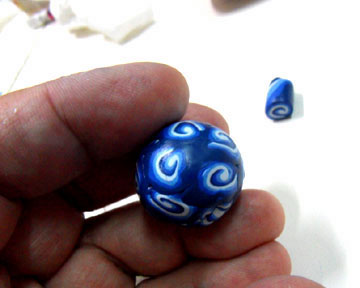

Baked examples

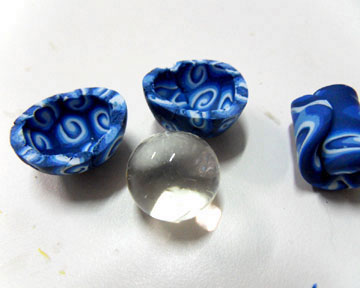

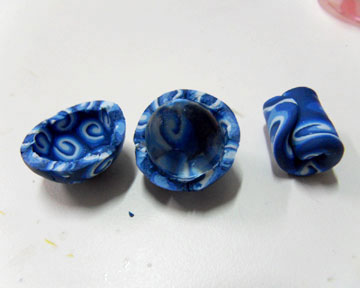

Cut bead shows the inside of the cane with the crystal gel bead


Hot crystal gel bead created the mist on the camera lens


Second take, this is how it looks

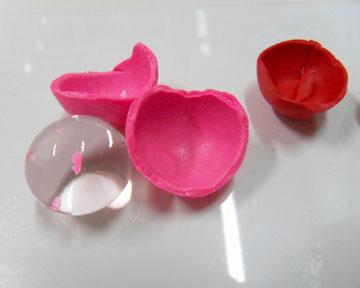

More Examples: Cutting the gel filled polymer clay bead


The strong crystal gel bead is still retaining the shape without
breaking

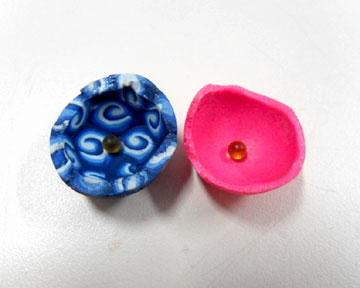

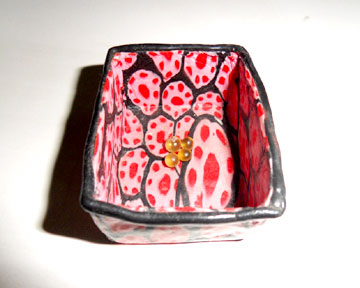

Comparing Shrunk beads in the polymer clay beads

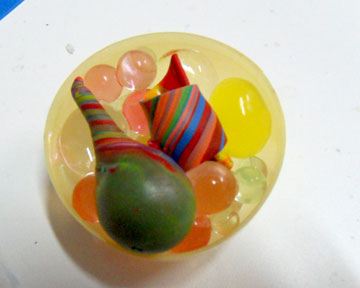

Other examples and tests

For Those Who Does Not Understand How To Create
The Hollow Clay Bead, Here's The Method,

If you provide holes on the clay bead, the gel will shrunk to
 its original size after leaving it for weeks. There will be water
evaporation through the holes and the pellet can be removed
 fthrough the hole or leaving the small pellet inside the clay bead.
Getting the gel out of the bead is not a problem, provide two
holes, one on each side of the bead, before or after baking,
destroyed the gel into fine pieces using a skewer. Blow out
the fine gel pieces through one side of the hole, just like
blowing the egg white and the yoke out of the egg
through the hole on one side and out through the other.
The other alternative just leave it to shrink.

Updated on 20/01/10


Shrinkage Rates Of The Gel Bead

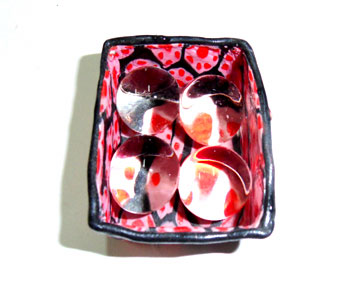

Crystal Gel Beads documented on 19/ 01/10

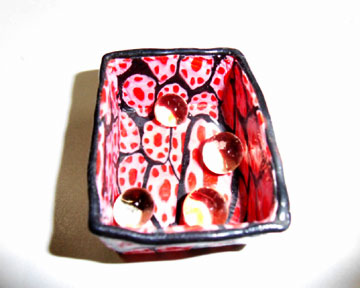

Crystal Gel Beads documented on 29/ 01/10


Crystal Gel Beads documented on 01 02/10



Using Ice Crystal Gel For Clay Base

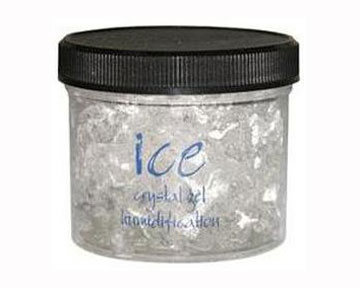

Ice Crystal Gel

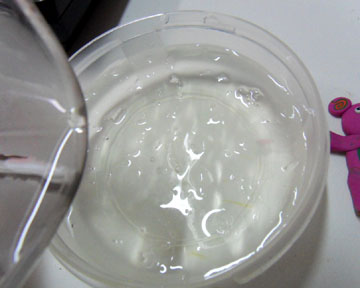

Filled the gel in a heat resistant container

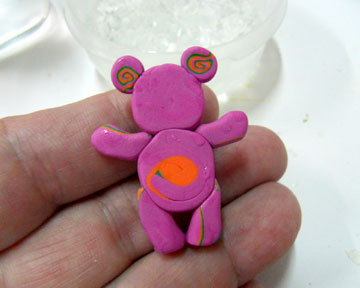

Placed the project on the Gel

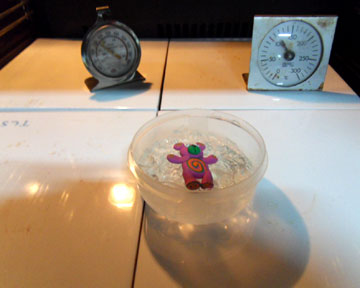

Baking It for 45 minutes, within a temperature of 150º C (300º F)

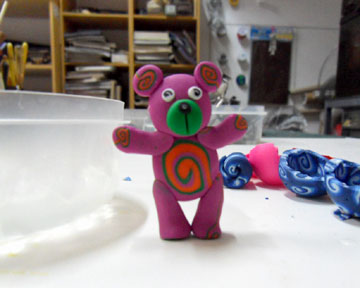

After baking removed the project from the base, notice that the
back is very clean


Completed project


Gel ready to be reuse for the flower vase


Other example, bigger lemon shape bead


More example of Gel Base application


Using Crystal Gel To Create Water/Sea

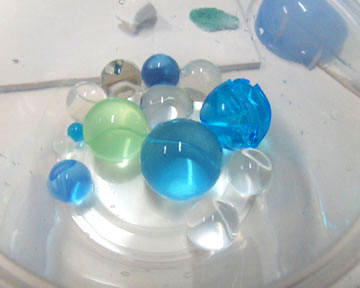

Selected water absorbed color beads

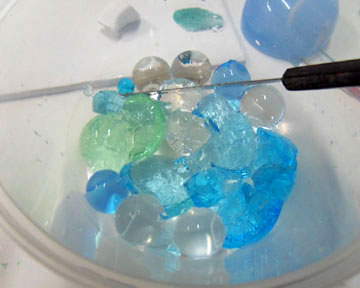

Smashed the beads with a pallet knife

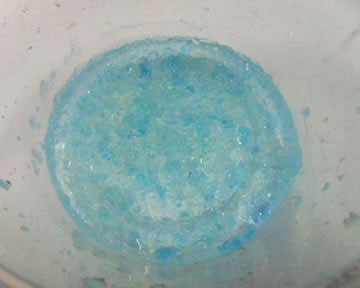

Refine the gel to smaller pieces


Creating A sail boat with tissue soaked with Deko Gel

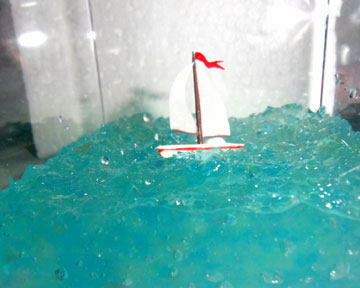

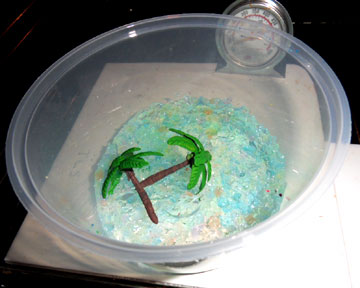

Testing the sail boat on Crystal Gel Sea


Example of application a "Tropical Island Diorama"
