IMPROVED VERSION OF THE BOX OVEN DESIGN TYPE A

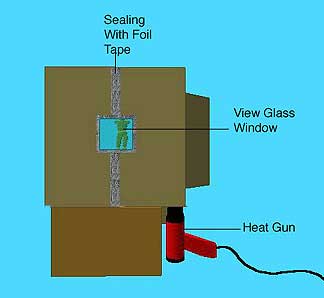

Improved version of the box oven design with a view window, using glass or poly carbonite square panel.

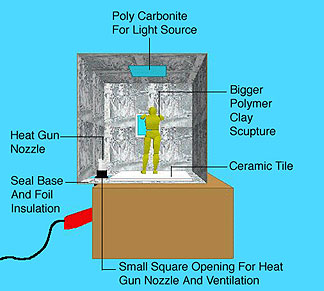

Cut open illustration shows the inside of the packing box, insulated with aluminium foils. The top window is to allow light source into the box.

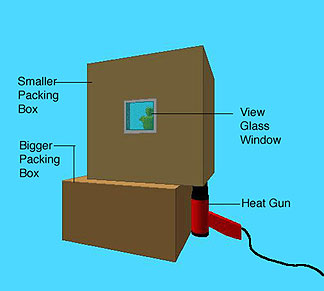

TYPE B



You can also used poly carbonite panel for view window.

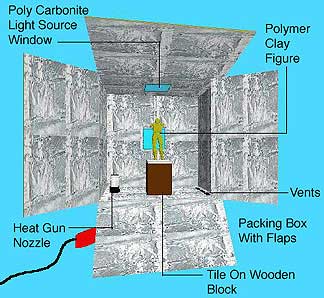

Looking at the inside of the open box oven, insulated with foils

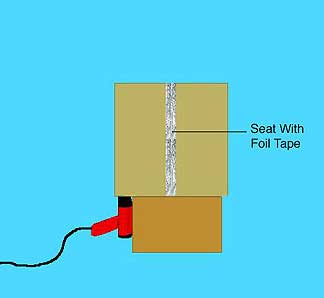

Sealed the box with foil tape before baking. Set the heat gun at 130C or 150C for baking the polymer clay figurine. Use the oven thermometer to check the baking temperature

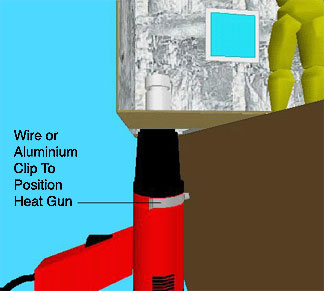

To position the heat gun, you can create a wire clip or aluminium clip.
