Cooking Polymer Clay In Oil

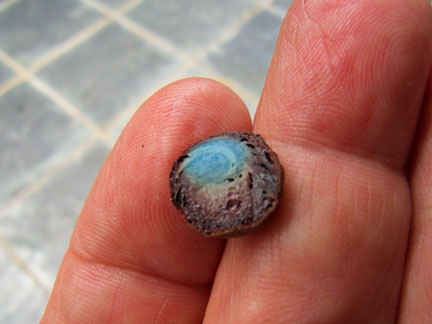

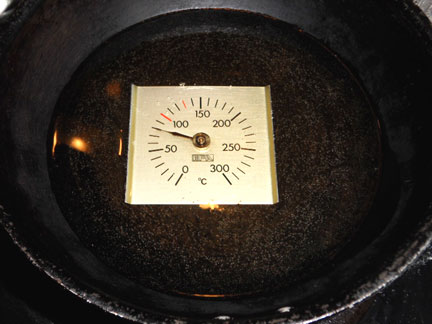

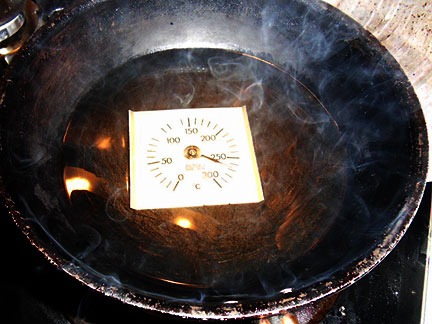

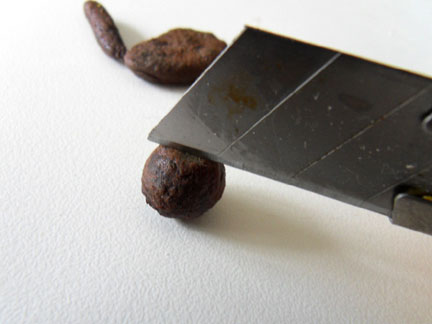

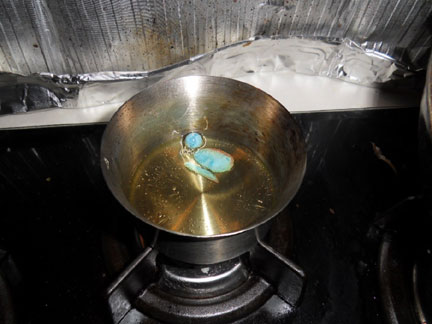

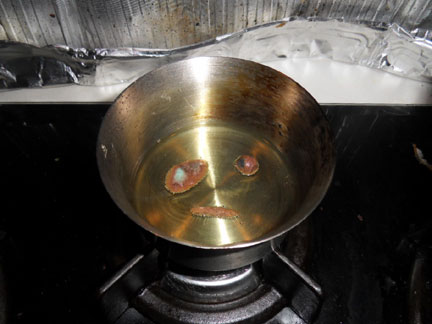

Curing clay in oil is not advisable, as the temperature will rapidly increase from 50º C to 250º C onwards. As for mineral oil, although the flashpoint is 170ºC, it is still too hot for curing the clay Using cooking oil as test the temperature rose rom 50º C to 200º C as the oil gets hotter. At this point the clay will changed color. Refere to the cooking below. The temperature reached about 200º C the clay begin to fry and react with the hot oil Clay blistered and color changed from blue to brown as the temperature increased and the oil began to fumes Fried polymer clay, is good for creating realistic fried food effect Closer view of the fried polymer clay Curious to find out what is going on inside the fried clay, cutting the clay with a cutter The high temperature distroyed the outer surface of the polymer clay as the core is fully cured A direct view of its effects
Subject: boiling polymer clay
Date: December 25, 2011 PM 12:20:43 GMT+08:00
To: Sim Garie <firstname.lastname@example.org>
Hi Garie,I do like the convenience of boiling polymer clay. but water only gets it to ~95 deg Celcius, so it does not cure fully. thinking of using oil to get it to 130-140 C. what do you think ? should work ? got some Corn Oil, I will try. think it might be safer , than mineral oil, since mineral oil has a low flashpoint of 170 C, what could be dangerous . thought I run it by you, what you think .
Polymer Clay Polymer Clay Products And Information
December 29, 2011 AM 1:30
Happy New Year ! Bonne Anne ! Frohes Neues Jahr!
thanks, for the reply .
just 2 days ago I tried it.
I had better luck.
how I used it
- stainless steel pot
- pop-up steamer
- Corn Oil
- Laser Thermometer
- bent Wire, for pop-up steamer to lower into the oil
On the stove I heated the Oil to 130C
note, that the temperature continued to rise to 147C
even with low flame.
I had put the Fimo Soft, on the pop-up Steamer,
and lowered into the Oil .
took out pop-up steamer with bend wire,
rinsed with water.
washed with dish soap to get oil off.
no color change
only the 0.5mm flat piece blistered,
spring ok, all other ~2mm+ ok.
2 x pots
- one with water
to get clay preheated and precured
for 5 min and then to put in 140C Oil.
corn oil was ok, still like to find some, with higher flashpoint,
maybe coconut grease ?
others, to get chopped fiberglass strands,
to mix with the clay, to increase strength.
there was no notable bad smell, the Oil seam to absorb it .
need to get a glass container for the Oil,
and a Do not use , Poisson , Label for the Oil.
maybe try it with synthetic automotive oil,
don't recommend mineral oil, due fumes,
and fire hazard, thought I have not tried.
- not allowed , to use oven in kitchen,
for polymer clay , due fumes and smell.
- toaster in garage, is inconsistent in temperature
and burns the clay
- boiling in water, does not fully cure
= using , Oil to cure polymer clay, gets acceptable results.
without the other short-comings.
large pieces , cure faster.
think, 5min for small, and 8min+ for large, should be enough.
--> I don't know how to test, if the clay is not cured ?
working with HOT Oil is, Dangerous !
use big enough pot, and cover, to reduce any splatter.
watch for temperature rise, Oil will continue to get hotter,
even after the heat/ flame is off. take it slow.
Hope this is helpful , and Interesting.
Sorry for the language, I'am an german engineer ,...
